Transfer Gearbox Unit

Product Description

Product Category : TGB (Transfer Gearbox Unit)

Category Description : VAS Horizontal Series Split Shaft Power Take Off  Gearbox Transmission Drive.

• Model Code : H1C+
• Model Code : H1C+ DIL (Dual In-Line Aux. PTO)

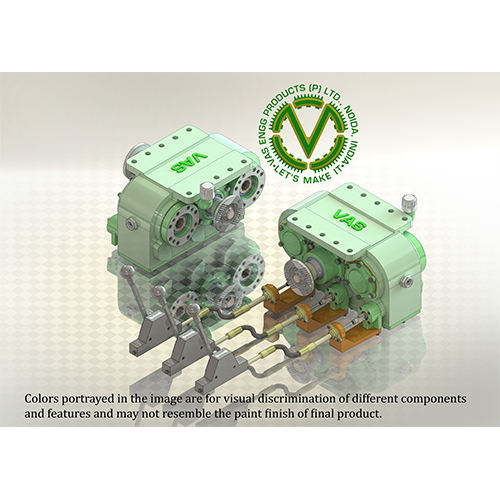

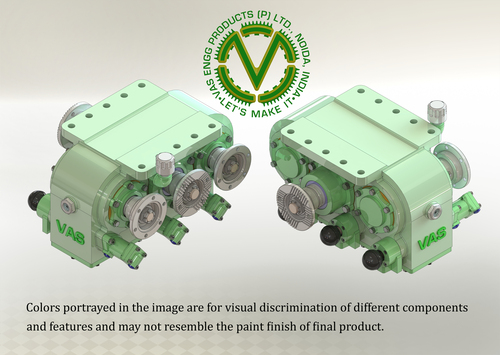

• Model Name : VAS-TGB-H1C+ 3BORE-4,700NM-R1.00-B45
• PTO Output Couplings (Auxiliary PTO Application)
• Typical SPV Application : Truck Mounted Jetting Machines/Sewage Cleaning Machines

Recommended For 125 HP Truck Chassis

• Driveline Throughput Torque : 4,700 NM, 487 Kg-m
• Left Hand Side PTO Aux. Output Torque : 776 NM, 80 Kg-m (Both Front & Rear)
• Right Hand Side PTO Aux. Output Torque : 776 NM, 80 Kg-m (Both Front & Rear)
• Left Hand Side PTO Aux. Output Power : 165 HP, 121 KW @ 1,500 rpm (Both Front & Rear)
• Right Hand Side PTO Aux. Output Power : 165 HP, 121 KW @ 1,500 rpm (Both Front & Rear)
• Left Hand Side Gear Ratio   1:1.00 (Other Gear Ratios Available On Demand)
• Right Hand Side Gear Ratio  1:1.00 (Other Gear Ratios Available On Demand)
• LHS & RHS PTO Aux. Outputs : Independent (Either Or Both) Operation (Simulatneous On Demand)
• No. Of Shifters : 3 (Three) Pneumatic Shifter with Mechanical Over Rides or with Mechanical Control Linkages
• Main Body : Graded CI,
• Full Forged 5 Bearing Single Bearing Housing Driveline (Standard Duty)
• Big & Wide Bottom Cover For Easy Maintenance (FVG : Full View Gearbox)
• ILS : In-Line Mechanical & Pneumatic Shifting
• COG : Choice Of Gears (Spur/Helical/Shaved/Grinded)
• COB : Choice Of Body (FE Cast Iron/Aluminum/MS Annealed/Hybrid)
• OSS : Outside Shifter (Locking) Screw
• Oil Level Indicator, Oil Filling Air Breather, Magnetic Oil Drain Plug, Double Lip Oilseals
• Forced Oil Lubrication Available On Demand

External Oil Cooler & Internal Oil Filter Available On Demand

VAS Unique Design Feature : Both Driveline throughput (vehicle in motion) and PTO Aux. Applications cannot be engaged (operated) at the same time. Either the vehicle shall run on the road (Driveline) or in a stationary position the PTO Auxiliary Outputs can be engaged. This VAS Unique feature eliminates the possibility of an auxiliary application accident while vehicle is in motion. If Both Driveline and PTO Aux. applications are required (to be operated) simultaneously, Kindly refer to our 300 & 360 series gearboxes which have both driveline & PTO Aux. simultaneous options.

VAS Unique Design Feature : After engaging or disengaging shifters, constant pneumatic air pressure is not required in VAS Gearboxes as a separate ball spring assembly is installed in the shifter assembly to LOCK the shifter shafts after shifting. Pneumatic air pressure is only required to shift (engage or disengage) the shifter shafts, after shifting, pneumatic air pressure can be removed.
