VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60 VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60 VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60
VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60
VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60 VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60

VAS-TGB-H6C- CI-3BORE-11300NM-R1.50-B60

100000 INR/Box

Product Details:

  • Usage Industrial
  • Product Type TGB (Transfer Gearbox Unit)
  • Supply Ability : 1000 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 100000 INR/Box
  • 50000.00 - 500000.00 INR/Box
  • 10 Piece

Product Specifications

  • Industrial
  • TGB (Transfer Gearbox Unit)

Trade Information

  • 1000 Piece Per Month
  • 45 Days

Product Description

Product Category: TGB (Transfer Gearbox Unit)

Category Description: VAS Horizontal Series Split Shaft Power Take Off Gearbox Transmission Drive.
  • Typical SPV Application: Truck Mounted Jetting Machines, Sewage Cleaning Machines etc.
  • Recommended For 230 HP Truck Chassis
  • Driveline Throughput Torque : 11,300 NM, 1,155 Kg-m
  • Double PTO Output Hydraulic Cover Left Hand Side (LHS) and Right-Hand Side (RHS).
  • LHS &RHS PTO Aux. Output Torque: 900 NM, 91 Kg-m (Both Front & Rear)
  • LHS &RHS Gear Ratio 1:1.50 (Step Up / Other Gear Ratios Available On Demand)
  • LHS & RHS PTO Aux. Outputs : Simultaneous Operation (Independent On Demand)
  • No. Of Shifters : Single Pneumatic Shifter with Mechanical Over Ride or with Mechanical Control Linkage
  • Main Body : Graded CI
  • Full Forged 5 Bearing Single Bearing Housing Driveline (Standard Duty)
  • Big & Wide Bottom Cover for Easy Maintenance (FVG: Full View Gearbox)
  • ILS: In-Line Mechanical & Pneumatic Shifting
  • COG: Choice of Gears (Spur/Helical/Shaved/Grinded)
  • COB: Choice of Body (FE Cast Iron/Aluminium/MS Annealed/Hybrid)
  • OSS: Outside Shifter (Locking) Screw
  • Oil Level Indicator, Oil Filling Air Breather, Magnetic Oil Drain Plug, Double Lip Oil seals
  • Forced Oil Lubrication Available on Demand
  • External Oil Cooler & Internal Oil Filter Available on Demand
Variants:

MODEL CODE

 DESCPTION

  REFERENCE

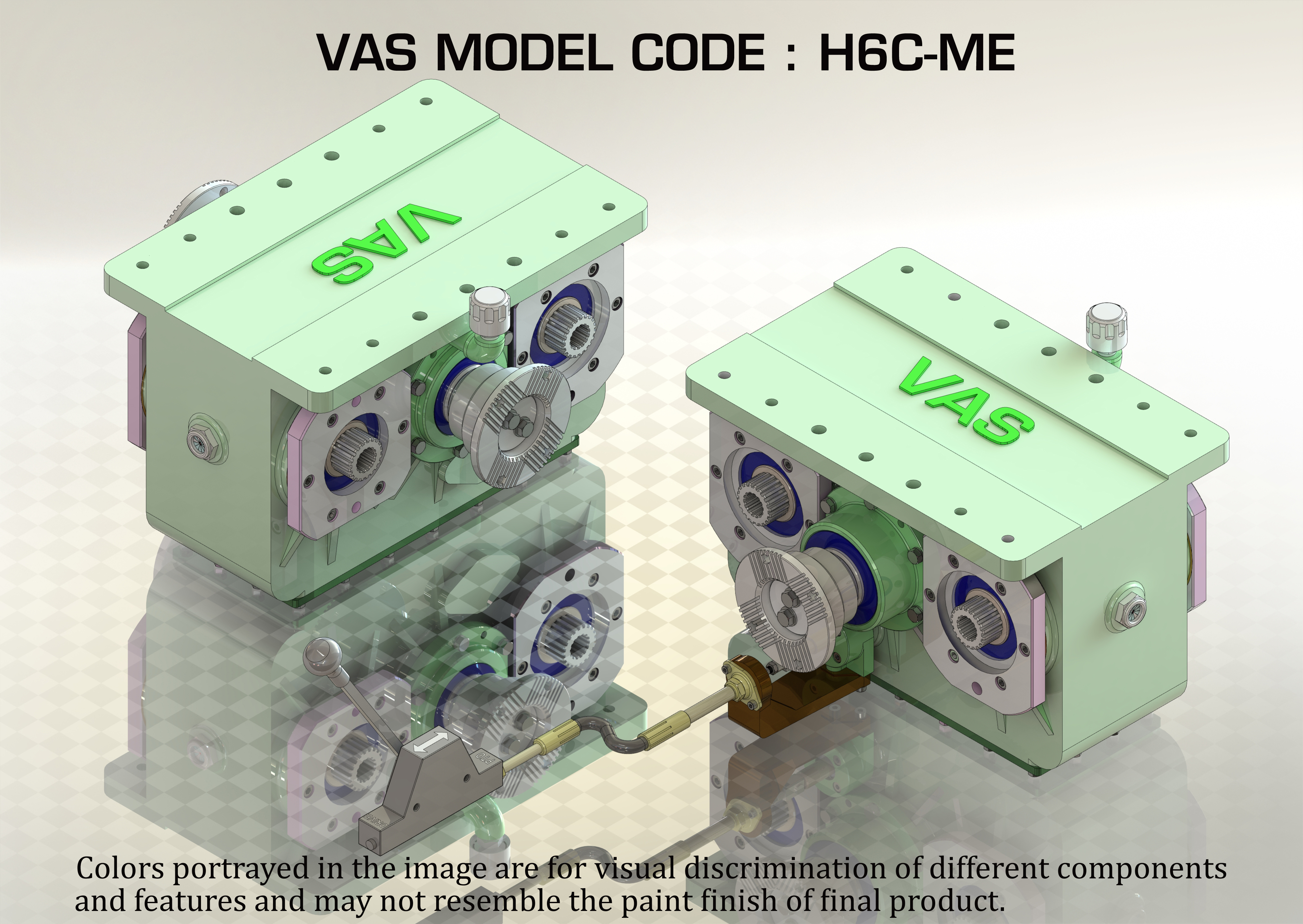

H6C-ME

(Mechanicalshifter)

Image No.1

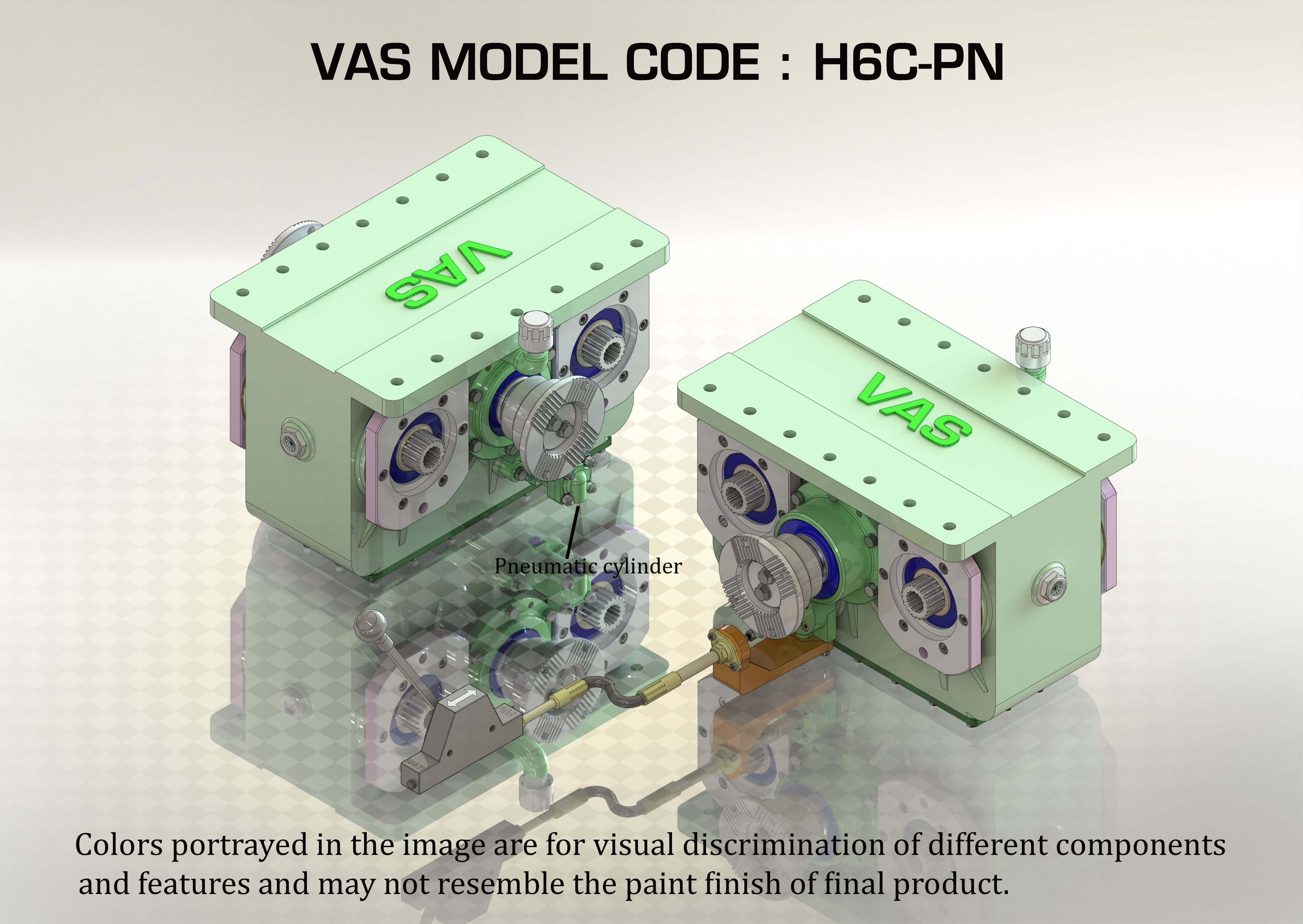

H6C-PN

  (Pneumatic shifter)

Image No.2


VAS Unique Design Feature: Both Driveline throughput (vehicle in motion)and PTO Aux. Applications cannot be engaged (operated) at the same time. Eitherthe vehicle shall run on the road (Driveline) or in a stationary position thePTO Auxiliary Outputs
