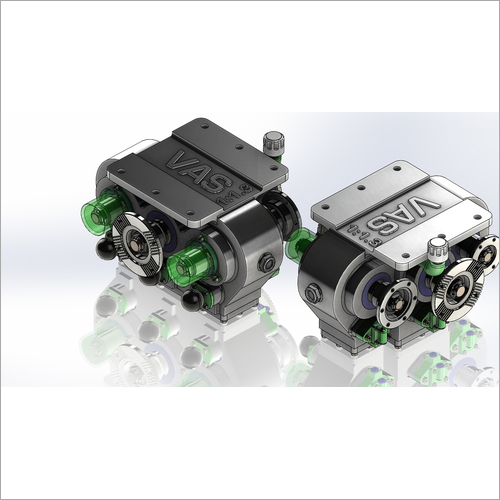

VAS-TGB-450-3BORE-AL-4,700NM-R1.00-B45

VAS-TGB-450-3BORE-AL-4,700NM-R1.00-B45
VAS-TGB-450-3BORE-AL-4,700NM-R1.00-B45
Product Code : 450
Brand Name : VAS
Product Description

Product Category : TGB (Transfer Gearbox Unit)

Category Description : VAS Horizontal Series Split Shaft Power Take Off  Gearbox Transmission Drive.



Model Code : 450

Model Name : VAS-TGB-450-3BORE-AL-4,700NM-R1.00-B45

PTO Output Couplings (Auxiliary PTO Application)

Typical SPV Application : Truck Mounted Jetting Machines/Sewage Cleaning Machines



Recommended For 160 HP Truck Chassis

Driveline Throughput Torque : 4,700 NM, 487 Kg-m

Left & Right Hand Side PTO Aux. Output Torque : 776 NM, 80 Kg-m (Both Front & Rear)

Left & Right Hand Side PTO Aux. Output Power : 165 HP, 121 KW @ 1,500 rpm (Both Front & Rear)

Left & Right Hand Side Gear Ratio – 1:1.00 (Available Gear Ratio – 0.67:1, 1:1.31 & 1:1.50)

LHS & RHS PTO Aux. Outputs : Independent (Either Or Both) Operation (Simulatneous On Demand)

No. Of Shifters : 3 (Three) Pneumatic Shifter with Mechanical Over Rides or with Mechanical Control Linkages



PTO Aux. Outputs Available While Vehicles In Motion (Driveline & PTO Aux. Available Simultaneously)

Full Aluminum Main Body Housing & Bottom Cover, Light Weight Gearbox With Max. Heat Dissipation

1+1 LHS PTO Aux. Outputs & 1+1 RHS PTO Aux. Outputs, Front & Rear Simultaneous, LHS & RHS Independent, Total 4 PTO Aux. Outputs



Main Body : Aluminum

Full Forged 4 Bearing Single Bearing Housing Driveline (Standard Duty)

Big & Wide Bottom Cover For Easy Maintenance (FVG : Full View Gearbox)

ILS : In-Line Pneumatic Shifting With Mechanical Over Rides (In Case Pneumatic Fails),

COG : Choice Of Gears (Spur/Helical/Shaved/Grinded)

OSS : Outside Shifter (Locking)

Screw Ball Spring Shifter Lock Provided - (Constant Pneumatic Pressure Not Required To Sustain Shifting, Air Pressure Can Be Disconnected After Shifting Is Done)

Oil Level Indicator, Oil Filling Air Breather, Magnetic Oil Drain Plug, Double Lip Oilseals



Forced Oil Lubrication Available On Demand

External Oil Cooler & Internal Oil Filter Available On Demand

Trade Information
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015
